Voltage and Drawing Current

Explore voltage & current in circuits! Learn series vs. parallel.

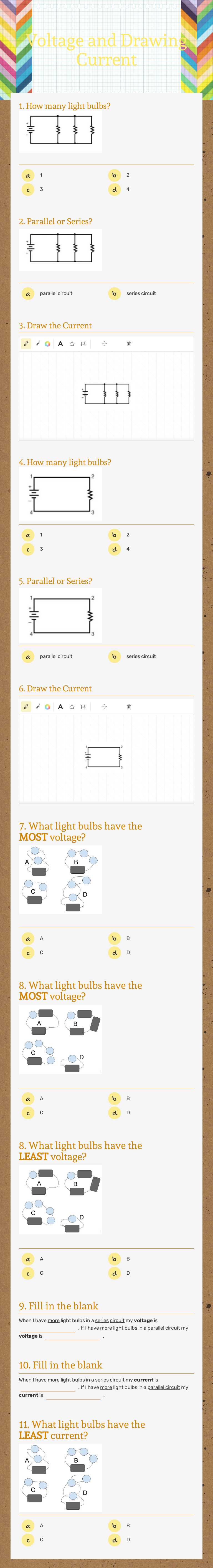

1. How many light bulbs? 1 2 3 4 2. Parallel or Series? parallel circuit series circuit 3. Draw the Current 4. How many light bulbs? 1 2 3 4 5. Parallel or Series? parallel circuit series circuit 6. Draw the Current 7. What light bulbs have the MOSTvoltage? A B C D 8. What light bulbs have the MOSTvoltage? A B C D 8. What light bulbs have the LEASTvoltage? A B C D 9. Fill in the blank When I have more light bulbs in a series circuit my voltage is decreasing. If I have more light bulbs in a parallel circuit my voltageis the same. 10. Fill in the blank When I have more light bulbs in a series circuit my current is the same. If I have more light bulbs in a parallel circuit my current is increasing. 11. What light bulbs have the LEASTcurrent? A B C D
