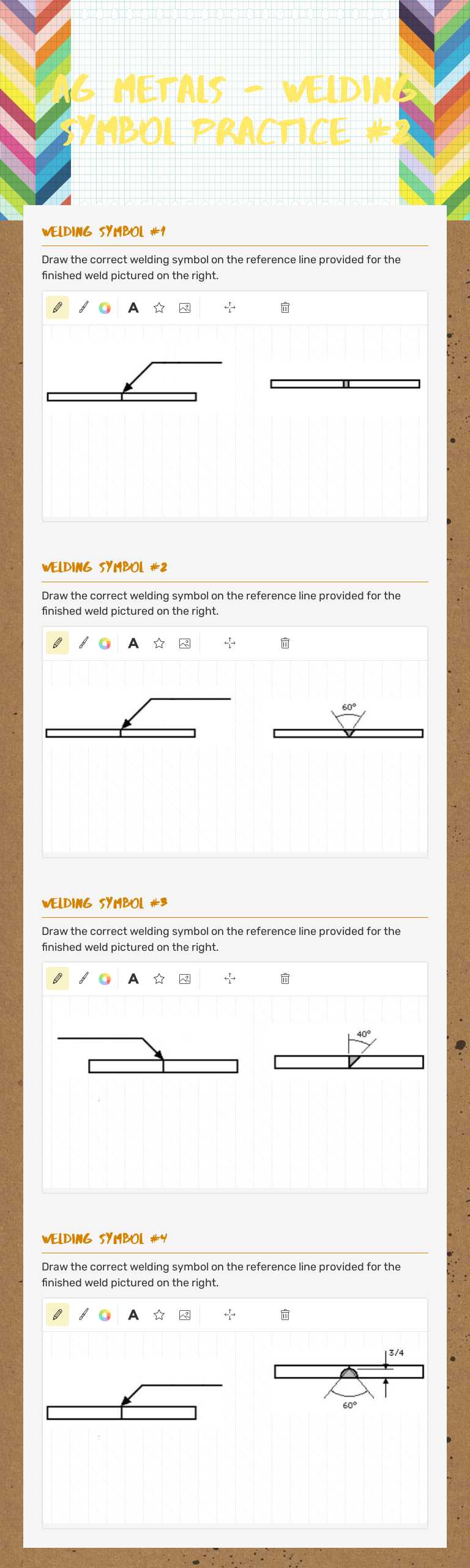

Ag Metals - Welding Symbol Practice #2

Welding Symbol #1 Draw the correct welding symbol on the reference line provided for the finished weld pictured on the right. Welding Symbol #2 Draw the correct welding symbol on the reference line provided for the finished weld pictured on the right. Welding Symbol #3 Draw the correct welding symbol on the reference line provided for the finished weld pictured on the right. Welding Symbol #4 Draw the correct welding symbol on the reference line provided for the finished weld pictured on the right.
